ARC: Autonomous Recording Camera

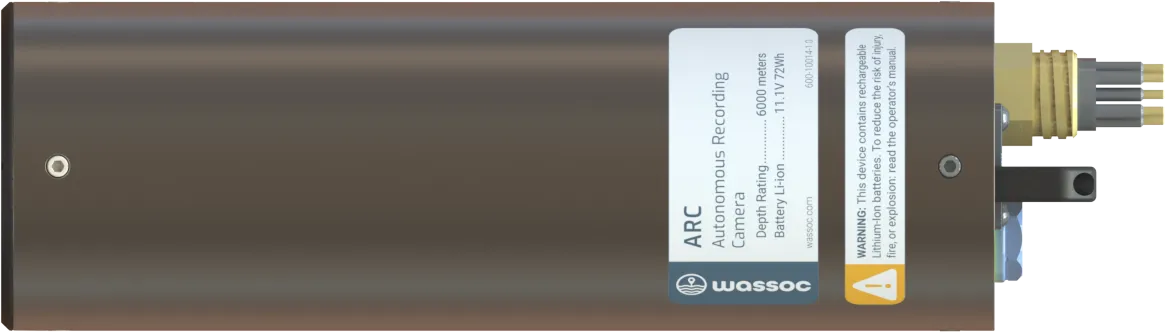

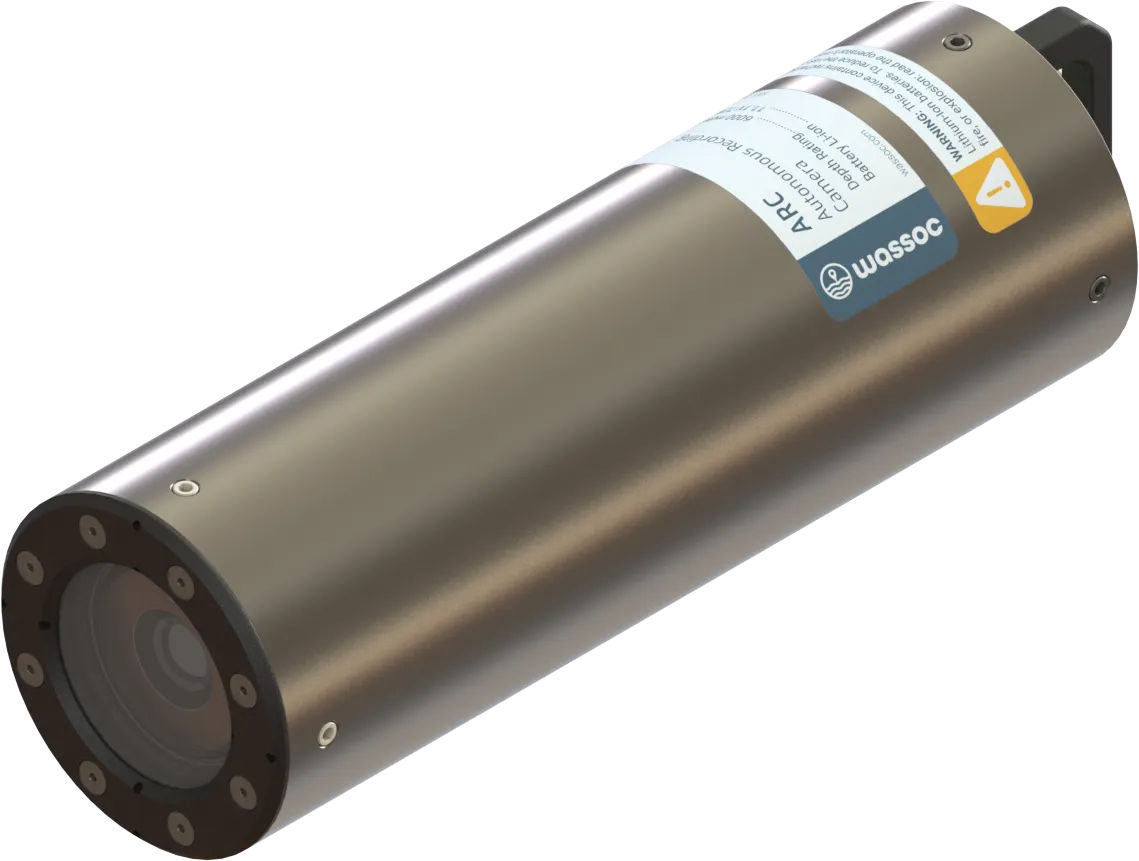

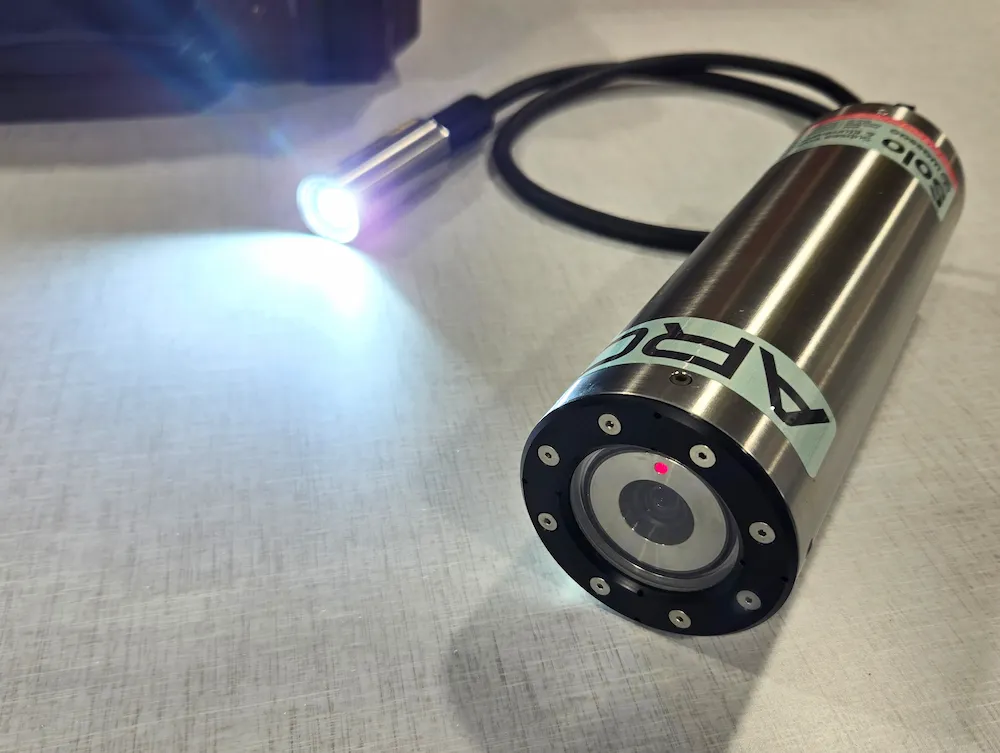

The ARC (Autonomous Recording Camera) is a full ocean rated, stand-alone, subsea imaging system. Powered by an internal rechargeable Li-ion battery, the ARC can be programmed for a wide variety of subsea imaging missions. Paired with Wassoc's Subsea LED Light, the ARC can autonomously illuminate and capture HD footage and imagery in ocean depths up to 6000m.

The ARC is charged and activated through a single subsea connector eliminating the need to open the housing during normal use. Once activated, the ARC performs the programmed sequence until it is de-activated, or the battery is depleted. Wireless programming and data download are accomplished through an intuitive browser-based GUI. In addition to autonomous operation, the ARC can interface with an external system via RS-232.

• Rechargeable Li-Ion battery
• 6000 meter rated
• Wifi connectivity
• Record 1080p HD footage
• Capture 12MP stills (single and burst)
• Adjustable shutter speed, white balance, and sensor gain
• Timelapse photography
• Subsea LED light mode and intensity
• Integral depth switch/sensor
• Time, date, and depth overlay
• Deep Sleep mode for multi-month deployments

Mechanical

Environmental

Electrical

Optical

System
