SLL: Subsea LED Light

The SLL (Subsea LED Light) is a full ocean rated, ultra compact subsea LED light designed for use with Wassoc's Autonomous Recording Camera. The SLL is an extremely efficient deep-water illumination tool, producing 125 lumens per watt with a maximum ouput of 1000 lumens at 6000k. Although optimized for use with the ARC, the SLL has a standard subsea connector and can interface with most subsea systems.


The SLL connects to the ARC, or any other system that provides 8-24VDC, to provide simple and high-output subsea lighting. Additionally, pin three on the bulkhead connector can accept a PWM signal for dimming.

  • Ultra compact
  • 6000 meter rated
  • 6000k standard (color options available)
  • PWM dimmable

Mechanical

Housing MaterialTitanium
Dimensions (OD x L)1.1 x 2.75" /
0.18 x 7cm
Weight (in air/water)0.4lbs [0.18kg] /
0.3lbs [0.13kg]
ConnectorSUBCONN MCBH3M

Environmental

Depth Rating6000m
Operating Temp-10 to +50°C
Overtemp ProtectionThermal Foldback

Electrical

Power Supply8-24 VDC
Power Consumption10W, 1200mA (max)

Optical

Viewport MaterialSapphire
Beam AngleWide/Flood
Download SLL Spec Sheet

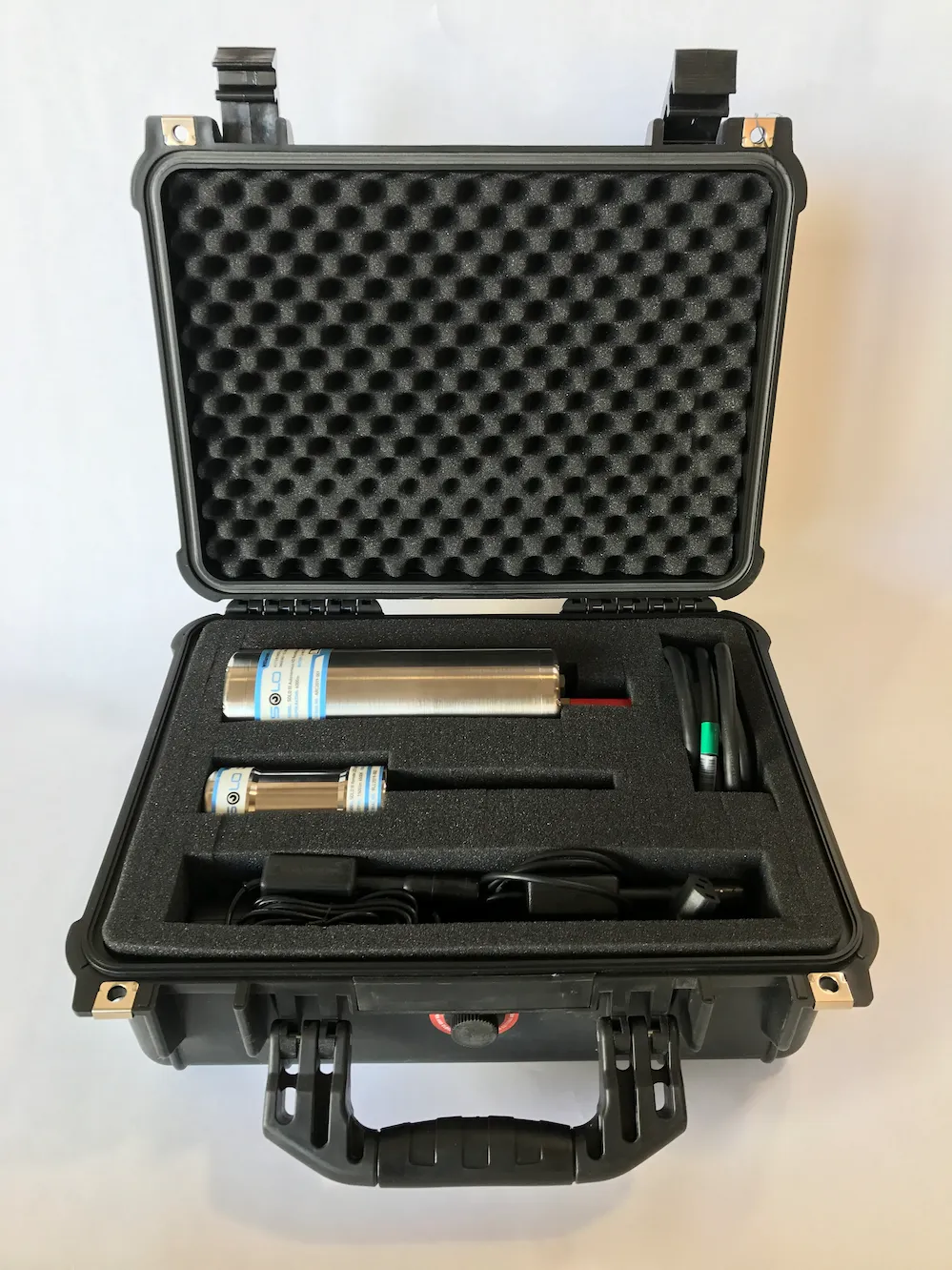

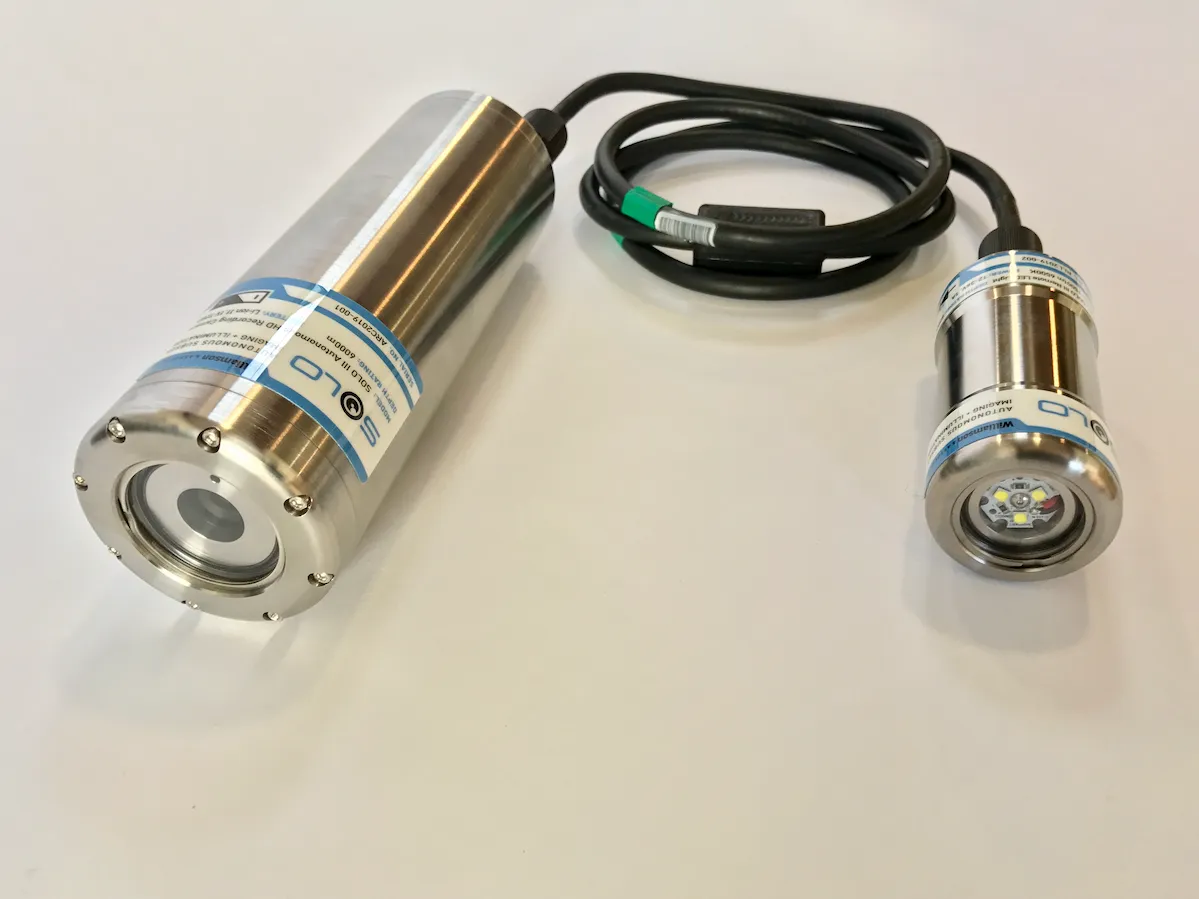

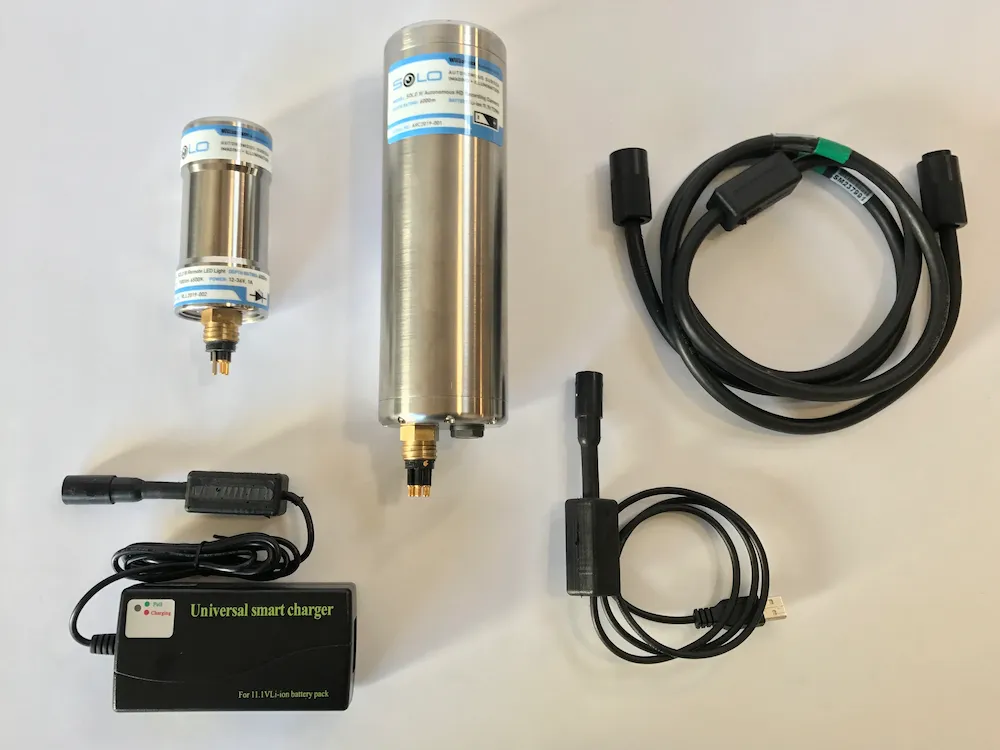

Wassoc's Subsea LED Light in a compact, titanium housingWassoc's Subsea LED Light integrated with Wassoc's Autonomous Recording Camera via subsea connectors and cableComponents for complete integration: Autonomous Recording Camera, Subsea LED Light, connector cables, and batter chargerIndustrial, weather-proof hard case with custom foam lining for packaging of Autonomous Recording Camera, Subsea LED Light, and accessories
Download SLL Spec Sheet
